Abshine FS-M270-60

Solar Panel Spec Datasheet

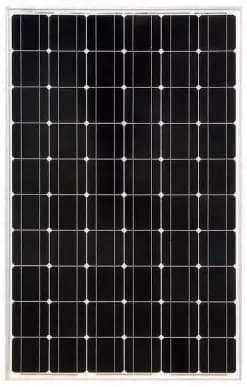

EnergyPal Abshine Solar Panels FS-M270-M300-60 FS-M270-60
Model
FS-M270-60
Series
FS-M270-60
Manufacturer
Abshine
Rated Power
270 Wp
Output Warranty
10 Years of 90% Output Power, 25 Years of 80% Output Power
Materials Warranty
25 Years

Solar Panel Performance

Rated Power
270 Wp
Efficiency
16.6 %
Voltage at Maximum Power VMPP
30.97 V
Current at Maximum Power IMPP
8.72 A
Open Circuit Voltage VOC
38.6 V
Short Circuit Current ISC
9.17 A
Power Tolerance Positive
+ 3 %
Maximum System Voltage
1000 V
Maximum Fuse Rating
15 A

Solar Panels Warranty Terms

Output Warranty
10 Years of 90% Output Power, 25 Years of 80% Output Power
Materials Warranty
25 Years

Solar Panels Thermal Ranges

Operating Temperature Range
-40~85 °C
Temperature Coefficient of Pmax
-0.42 %/°C
Temperature Coefficient of Voc
-0.29 %/°C
Temperature Coefficient of Isc
0.04 %/°C

Buy Abshine FS-M270-60 Solar Panels

EnergyPal is a dealer for the best Solar Panels and leading energy companies, solar installers and manufacturers of solar and battery storage products. To see our latest deals, and learn about financing and $0 down lease options, please request a quote and we will call you immediately.

Solar Panel Attributes

Weight
19 kg
Cell Type
Monocrystalline
Cell Size
156×156 mm
Cell Count
60
Glass Thickness
3.2 mm
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 67
Connector Type
MC4
Cable Crossection
4 mm2
Cable Length
900 mm
