CRAFT SOLAR CR320-60H158

Solar Panel Spec Datasheet

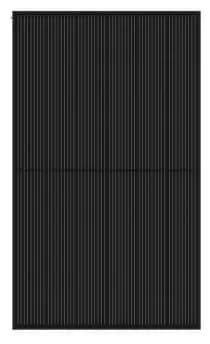

EnergyPal CRAFT SOLAR Solar Panels M158 Black 9BB Half Cut Mono 320-330W CR320-60H158
Model
CR320-60H158
Series
CR320-60H158
Manufacturer
CRAFT SOLAR
Rated Power
320 Wp
Output Warranty
25 Years of 80.68% Output Power
Materials Warranty
15 Years

CRAFT SOLAR Solar Panel Spec Datasheet CR320-60H158

Download Datasheet

Solar Panel Performance

Rated Power
320 Wp
Efficiency
18.98 %
Voltage at Maximum Power VMPP
33.53 V
Current at Maximum Power IMPP
9.55 A
Open Circuit Voltage VOC
41.95 V
Short Circuit Current ISC
10.08 A
Power Tolerance Positive
+ 1.5 %
Maximum System Voltage
1500 V
Maximum Fuse Rating
15 A

Solar Panels Warranty Terms

Output Warranty
25 Years of 80.68% Output Power
Materials Warranty
15 Years

Solar Panels Thermal Ranges

Operating Temperature Range
-40~85 °C
Temperature Coefficient of Pmax
-0.365 %/°C
Temperature Coefficient of Voc
-0.285 %/°C
Temperature Coefficient of Isc
0.055 %/°C

Buy CRAFT SOLAR CR320-60H158 Solar Panels

EnergyPal is a dealer for the best Solar Panels and leading energy companies, solar installers and manufacturers of solar and battery storage products. To see our latest deals, and learn about financing and $0 down lease options, please request a quote and we will call you immediately.

Solar Panel Attributes

Weight
19.1 kg
Cell Type
Monocrystalline
Cell Count
120
Glass Type
Tempered, Low Iron
Glass Thickness
3.2 mm
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 68
Connector Type
MC4
Cable Crossection
4 mm2
Cable Length
1000 mm
