Buyer's Guide 2023

CRAFT SOLAR CR385-72F158

Solar Panel Spec Datasheet

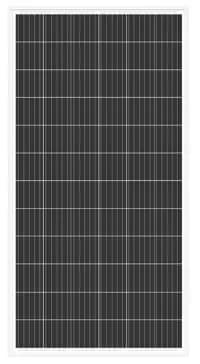

EnergyPal CRAFT SOLAR Solar Panels M158 Silver Full Cell Mono 380-390W CR385-72F158
Model
CR385-72F158
Series
CR385-72F158
Manufacturer
CRAFT SOLAR
Rated Power
385 Wp
Output Warranty
25 Years of 80.68% Output Power
Materials Warranty
15 Years

CRAFT SOLAR Solar Panel Spec Datasheet CR385-72F158

Download Datasheet

Solar Panel Performance

Rated Power
385 Wp
Efficiency
19.42 %
Voltage at Maximum Power VMPP
39.3 V
Current at Maximum Power IMPP
9.8 A
Open Circuit Voltage VOC
47.06 V
Short Circuit Current ISC
10.2 A
Power Tolerance Positive
+ 1.5 %
Maximum System Voltage
1500 V
Maximum Fuse Rating
15 A

Solar Panels Warranty Terms

Output Warranty
25 Years of 80.68% Output Power
Materials Warranty
15 Years

Solar Panels Thermal Ranges

Operating Temperature Range
-40~85 °C
Temperature Coefficient of Pmax
-0.365 %/°C
Temperature Coefficient of Voc
-0.285 %/°C
Temperature Coefficient of Isc
0.055 %/°C

Buy CRAFT SOLAR CR385-72F158 Solar Panels

EnergyPal is a dealer for the best Solar Panels and leading energy companies, solar installers and manufacturers of solar and battery storage products. To see our latest deals, and learn about financing and $0 down lease options, please request a quote and we will call you immediately.

Solar Panel Attributes

Weight
22.4 kg
Cell Type
Monocrystalline
Cell Size
158.75×158.75 mm
Cell Count
72
Glass Type
Tempered, Low Iron
Glass Thickness
3.2 mm
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 68
Connector Type
MC4
Cable Crossection
4 mm2
Cable Length
1200 mm
