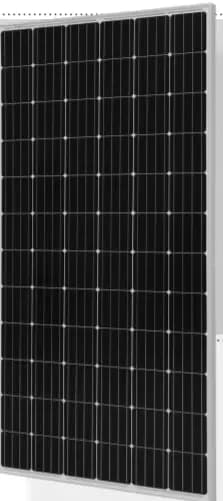

Jonsol JSM-72

335
Solar Panel Spec Datasheet

Model
335
Series
JSM-72
Manufacturer
Jonsol
Rated Power
335 Wp
Output Warranty
10 Years of 90% Output Power, 25 Years of 80% Output Power
Materials Warranty
15 Years
Jonsol
Solar Panel Spec Datasheet
335
Solar Panel Performance
Rated Power
335 Wp
Efficiency
17.3 %
Voltage at Maximum Power VMPP
38.87 V
Current at Maximum Power IMPP
8.63 A
Open Circuit Voltage VOC
47.19 V
Short Circuit Current ISC
9.33 A
Power Tolerance Positive
+ 3 %
Maximum System Voltage
1000 V
Maximum Fuse Rating
15 A
Solar Panels Warranty Terms
Output Warranty
10 Years of 90% Output Power, 25 Years of 80% Output Power
Materials Warranty
15 Years
Solar Panels Thermal Ranges
Operating Temperature Range
-40~85 °C
Temperature Coefficient of Pmax
-0.41 %/°C
Temperature Coefficient of Voc
-0.32 %/°C
Temperature Coefficient of Isc
0.05 %/°C
Solar Panel Attributes
Weight
24 kg
Cell Type
Monocrystalline
Cell Size
156×156 mm
Cell Count
72
Glass Type
Tempered
Glass Thickness
3.2 mm
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 67
Cable Crossection
4 mm2
