LONGi LR4-72HBD-430M

Solar Panel Spec Datasheet

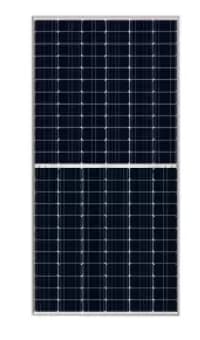

EnergyPal LONGi Solar Panels LR4-72HBD 425-455M LR4-72HBD-430M
Model
LR4-72HBD-430M
Series
LR4-72HBD-430M
Manufacturer
LONGi
Rated Power
430 Wp
Output Warranty
10 Years of 93.95% Output Power, 30 Years of 84.95% Output Power
Materials Warranty
10 Years

The LR4-72HBD-430M solar panels are compatible with various solar energy systems, including grid-tied and off-grid setups. Homeowners can also pair these panels with energy storage solutions, such as batteries, to store excess energy for use during peak hours or in case of power outages.

LONGi Solar Panel Spec Datasheet LR4-72HBD-430M

Download Datasheet

Solar Panel Performance

The LR4-72HBD-430M solar panels have a rated output of 430 Wp and an impressive efficiency of 19.8 %, making them an excellent choice for homeowners looking to harness the power of the sun and reduce their energy costs.

With a maximum system voltage of 1500 V and a temperature coefficient of -0.35 %/°C, these solar panels can perform optimally even in challenging weather conditions.

Rated Power
430 Wp
Efficiency
19.8 %
Voltage at Maximum Power VMPP
40.6 V
Current at Maximum Power IMPP
10.6 A
Open Circuit Voltage VOC
48.9 V
Short Circuit Current ISC
11.3 A
Power Tolerance Positive
+ 1 %
Maximum System Voltage
1500 V
Maximum Fuse Rating
20 A

Solar Panels Warranty Terms

Output Warranty
10 Years of 93.95% Output Power, 30 Years of 84.95% Output Power
Materials Warranty
10 Years

Solar Panels Thermal Ranges

The thermal performance of the LR4-72HBD-430M solar panels from LONGi ensures their reliability and efficiency across varying temperature conditions. These panels are designed to operate optimally within a wide operating temperature range of -40~85 °C. Additionally, the temperature coefficients of the panels, such as the Temperature Coefficient of Pmax (-0.35 %/°C), Voc (-0.284 %/°C), and Isc (0.05 %/°C), play a vital role in determining the panel performance under changing environmental conditions. The carefully engineered thermal attributes of these solar panels contribute to their long-lasting performance and make them an ideal choice for regions with diverse climate patterns

Operating Temperature Range
-40~85 °C
Temperature Coefficient of Pmax
-0.35 %/°C
Temperature Coefficient of Voc
-0.284 %/°C
Temperature Coefficient of Isc
0.05 %/°C

Buy LONGi LR4-72HBD-430M Solar Panels

EnergyPal is a dealer for the best Solar Panels and leading energy companies, solar installers and manufacturers of solar and battery storage products. To see our latest deals, and learn about financing and $0 down lease options, please request a quote and we will call you immediately.

Solar Panel Attributes

Weight
27.5 kg
Cell Type
Bifacial, PERC
Cell Count
144
Glass Type
Tempered, Double Glass
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 68
Cable Crossection
4 mm2
Cable Length
300 mm
