Buyer's Guide 2024

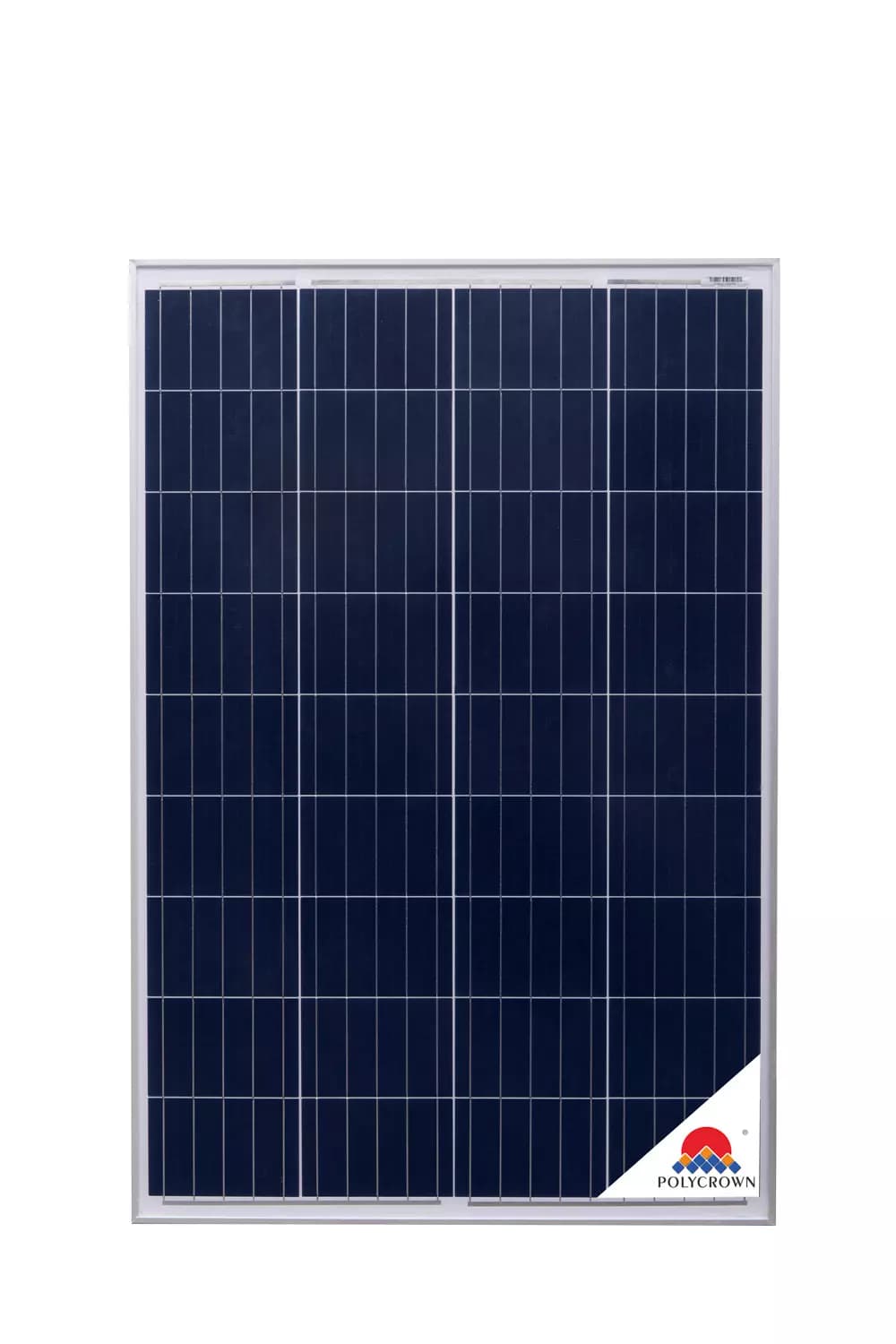

PolyCrown Solar Tech NS-80P6-36

Solar Panel Spec Datasheet

EnergyPal PolyCrown Solar Tech Solar Panels NS-70-85P6-36 NS-80P6-36
Model
NS-80P6-36
Series
NS-80P6-36
Rated Power
80 Wp
Output Warranty
25 Years of 80% Output Power
Materials Warranty
15 Years

The NS-80P6-36 solar panels are compatible with various solar energy systems, including grid-tied and off-grid setups. Homeowners can also pair these panels with energy storage solutions, such as batteries, to store excess energy for use during peak hours or in case of power outages.

Solar Panel Performance

The NS-80P6-36 solar panels have a rated output of 80 Wp and an impressive efficiency of 15.5 %, making them an excellent choice for homeowners looking to harness the power of the sun and reduce their energy costs.

With a maximum system voltage of 1000 V and a temperature coefficient of , these solar panels can perform optimally even in challenging weather conditions.

Rated Power
80 Wp
Efficiency
15.5 %
Voltage at Maximum Power VMPP
17.9 V
Current at Maximum Power IMPP
4.47 A
Open Circuit Voltage VOC
21.9 V
Short Circuit Current ISC
4.93 A
Power Tolerance Positive
+ 5 %
Maximum System Voltage
1000 V
Maximum Fuse Rating
15 A

Solar Panels Warranty Terms

Output Warranty
25 Years of 80% Output Power
Materials Warranty
15 Years

Solar Panels Thermal Ranges

The thermal performance of the NS-80P6-36 solar panels from PolyCrown Solar Tech ensures their reliability and efficiency across varying temperature conditions. These panels are designed to operate optimally within a wide operating temperature range of -40~85 °C. Additionally, the temperature coefficients of the panels, such as the Temperature Coefficient of Pmax (), Voc (), and Isc (), play a vital role in determining the panel performance under changing environmental conditions. The carefully engineered thermal attributes of these solar panels contribute to their long-lasting performance and make them an ideal choice for regions with diverse climate patterns

Operating Temperature Range
-40~85 °C

Buy PolyCrown Solar Tech NS-80P6-36 Solar Panels

EnergyPal is a dealer for the best Solar Panels and leading energy companies, solar installers and manufacturers of solar and battery storage products. To see our latest deals, and learn about financing and $0 down lease options, please request a quote and we will call you immediately.

Solar Panel Attributes

Cell Type
Polycrystalline
Cell Size
158.75×158.75 mm
Cell Count
36
Glass Type
Tempered, Anti-reflection Coating, High Transmittance, Low Iron
Glass Thickness
3.2 mm
Frame Type
Aluminium Alloy
