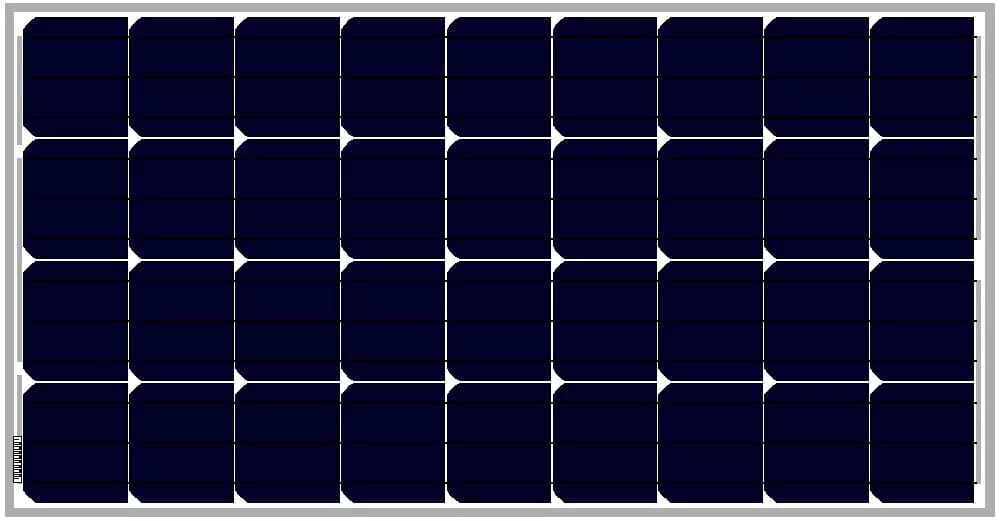

Senta Energy ST5 100W-Mono

ST100M6-36
Solar Panel Spec Datasheet

Model
ST100M6-36
Series
ST5 100W-Mono
Manufacturer
Senta Energy
Rated Power
100 Wp
Output Warranty
10 Years of 90% Output Power, 20 Years of 80% Output Power
Materials Warranty
5 Years
Senta Energy
Solar Panel Spec Datasheet
ST100M6-36
Solar Panel Performance
Rated Power
100 Wp
Efficiency
15 %
Voltage at Maximum Power VMPP
18.1 V
Current at Maximum Power IMPP
5.52 A
Open Circuit Voltage VOC
22.1 V
Short Circuit Current ISC
5.86 A
Power Tolerance Positive
+ 3 %
Maximum System Voltage
600 V
Maximum Fuse Rating
10 A
Solar Panels Warranty Terms
Output Warraty
10 Years of 90% Output Power, 20 Years of 80% Output Power
Materials Warraty
5 Years
Solar Panels Thermal Ranges
Operating Temperature Range
-40~+85 °C
Solar Panel Attributes
Weight
8 kg
Cell Type
Monocrystalline
Cell Size
156.75×156.75 mm
Cell Count
36
Glass Type
Tempered, Low Iron
Glass Thickness
3.2 mm
Frame Type
Anodized Aluminium Alloy
Junction Box Protection Class
IP 65
Connector Type
MC4
Cable Crossection
4 mm2
Cable Length
900 mm
