How Do Solar Panels Work?

5 min

How do Solar Panels Work?

Solar panels transform sunlight into electricity with minimal environmental impact, providing a viable alternative to fossil fuels. Not only important in reducing greenhouse gas emissions, but they also contribute to energy independence and long-term cost savings. In this article, we answer the question how do solar panels work? by examining the science behind them, the components involved in generating electricity, and the process of converting sunlight into usable power.

The Science Behind Solar Panels: Photovoltaic Cells

At the heart of solar panels are photovoltaic (PV) cells, which are responsible for converting sunlight into electricity. These cells are composed of layers of semiconductor materials, most commonly silicon. The semiconductor layers create an electric field, with one layer containing a positive charge and the other a negative charge.

When sunlight, or more specifically, photons, strike the PV cells, they are absorbed by the semiconductor material. This absorption process releases electrons from their atoms and causes them to move, generating an electric current. This flow of electrons is known as the photovoltaic effect, which is the fundamental principle behind the operation of solar panels.

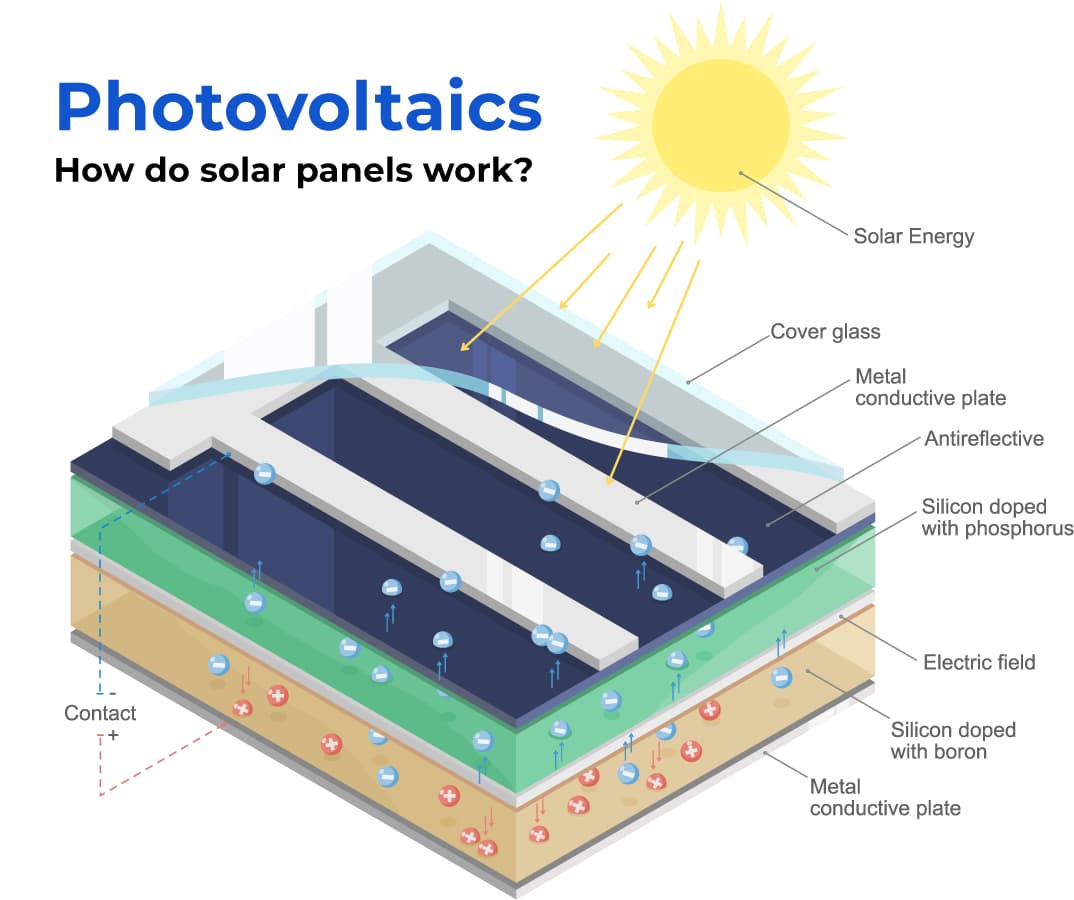

Photovoltaics - How do solar panels work?

Solar panels are made up of photovoltaic cells, which are composed of layers of semiconductor materials. These materials absorb photons from sunlight, causing electrons to be released and creating a flow of electricity. This electricity is then converted from direct current (DC) to alternating current (AC) using an inverter, which can be used to power appliances or be fed back into the grid.

Main Components of a Solar Panel:

Silicon Solar Cells

Silicon is the most widely used material for solar cells due to its abundance, relatively low cost, and ability to efficiently convert sunlight into electricity. There are two main types of silicon solar cells: monocrystalline and polycrystalline. Monocrystalline cells are made from a single crystal of silicon, which allows for more efficient electron movement and higher efficiency. Polycrystalline cells are made from multiple silicon crystals and are generally less efficient but more affordable than monocrystalline cells.

Learn more about panel types with our home solar guide.

Encapsulation And Protective Layers

Solar cells are encapsulated in protective layers to prevent moisture, dirt, and other environmental factors from damaging the cells. Typically, a layer of ethylene-vinyl acetate (EVA) is used as the encapsulant, providing a transparent and adhesive layer that seals the cells. Above the EVA layer is a layer of tempered glass, which protects the cells from impact and allows sunlight to pass through efficiently. A backsheet, usually made of a polymer material, is placed behind the solar cells to provide additional insulation and protection.

Metal frame

Solar panels are housed within a metal frame, typically made of aluminum, which provides structural support and rigidity. The frame also helps protect the edges of the glass and allows for easy mounting of the solar panel on various surfaces, such as rooftops or ground-mounted installations.

Junction box and electrical connections

A junction box is located at the back of the solar panel, providing a safe and secure place for the electrical connections between the solar cells and the external wiring. The junction box also contains bypass diodes, which help prevent power loss due to shading or cell damage.

Want to learn more about what solar panel would be best for your home? Check out our Solar Panel Guide

Converting Sunlight into Usable Electricity with Solar Panels (Step by Step)

1. Capturing sunlight and generating direct current (DC)

As sunlight hits the solar panel, the PV cells within the panel absorb the photons and release electrons, generating a flow of electricity. This electricity is in the form of direct current (DC) power, which is not compatible with most home appliances or the power grid.

2. Inverting direct current (DC) to alternating current (AC)

To make the solar-generated electricity usable, a device called an inverter is required. The inverter converts the DC power generated by the solar panel into alternating current (AC) power, which is the standard form of electricity used in homes and businesses. This conversion process is essential for ensuring that solar-generated electricity can be used to power appliances or be fed back into the grid.

Storing excess solar-generated electricity In some solar energy systems, excess solar-generated electricity can be stored in batteries or other energy storage solutions for later use. This storage capability is particularly useful during periods of low sunlight or at night when solar panels are not generating power. By storing excess electricity, solar energy systems can provide a more consistent and reliable power supply, even when sunlight is not available.

3. Connecting to the grid

Many solar energy systems are connected to the electrical grid, allowing excess solar-generated electricity to be fed back into the grid and used by others. This process is known as net metering and can help offset the cost of electricity consumed from the grid when solar generation is insufficient. In some cases, utility companies may even provide credits or payments for excess solar-generated electricity fed back into the grid.

Final Thoughts on Solar Panels

Solar panels represent a remarkable technological achievement that allows us to harness the sun's energy and generate clean, sustainable electricity. By understanding the intricacies of solar panel operation, the components involved, and the process of converting sunlight into usable power, we can better appreciate the potential of this renewable energy source. Solar energy plays a critical role in addressing the global challenges of climate change and resource depletion, providing hope for a more sustainable future. As we continue to invest in research and development, solar panels will become even more efficient and cost-effective, solidifying their position as a key player in the transition towards a greener, cleaner world for generations to come.
